Max, Min, Peak/Peak Counter
;Discontinued NEW TYPE C-500/C-700
| * Peak-Peak counter is most suitable for deviation testing. * 3 test modes --- maximum amount, minimum amount and deviation amount --- can be alternately displayed. * High speed calculation is processed in the hardware of the comparison circuit instead of in the CPU. (central processing unit) |
 |
Max, Min, Peak/Peak Counter
| Specifications | ||

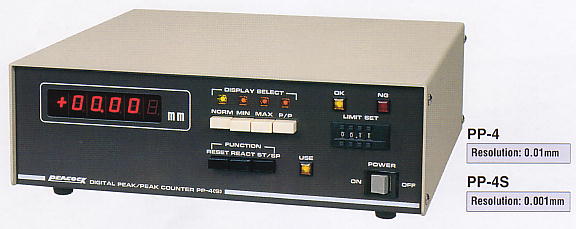

| Model | PP-4 | PP-4S |
| Resolution | 0.01mm | 0.001mm |
| Display | LED (red) display ±99.99 | LED (red) display ±9.999 |
| Response speed | 600mm / sec | 300mm / sec |
| Measurement for judgement |
4 digits with digital switch ±sign (±99.99) | 4 digits with digital switch ±sign (±9.999) |
| Judgement | Judgement is performed against PEAK-PEAK values (in 2 stage judgement of OK and NG) | |
| Judgement Output |
NG output at occurrence of NG (relay contact point"a") Relay (OMRON G6E-134P-US12V) | |

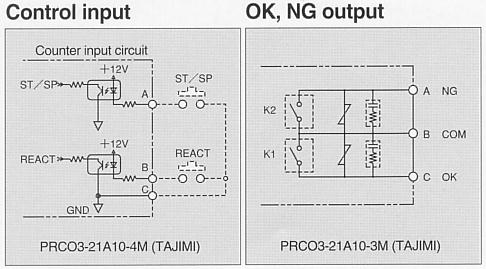

| Control input (START/STOP) |
Measurement starts at relay contact input of "ON" and ends at "OFF" ("USE" lamp is lit during measurement) |
|
| Display selection switch |
4 interlocking switches: NORMAL, MAX, MIN AND PEAK/PEAK | |
| Test interruption control input |
Contact point input "ON" suspends P-P measurement and "OFF" releases it | |
| Data output | Output the display channel, BCD positive logic, parallel digits output, Open collector (TD62104 equivalent) |
|
| Operating temperature |
0 to 40ºC / storage at -10 to 50ºC | |
| Power supply | AC100V (90 - 100V) 50/60Hz (2m power cable w/plug) | |
| Weight | 3.5kg | |
| Outer dimensions | 300(W) × 280(D) × 110(H) mm (except for rubber foot portion 10mm) | |

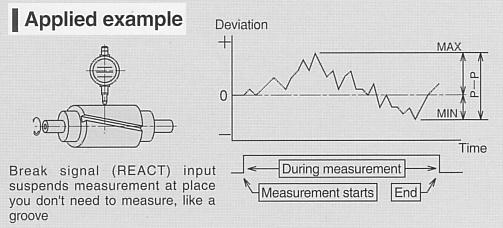

| Operation | * Measurement starts at "ON" while rotating workpiece, necessary resetting the counter and starting to receive data. Measurement stops at input of "OFF" signal, holding measured data and judgement, with completion of measurement. * When there is a point not needed for measuring during measurement (tooth, groove of key, etc), measurement can be interrupted by "REACT" button. When you release it, it resumes comparative measurement using data measured before interruption. |
|
| Compatible linear gauges |
DL-2, D-5, D-10, D-20 | DL-2S, D-5S, D-10S |
| Accessories | * START/STOP input connector -------- 1 pc. (PRC03-12A10-4F10.5) Judgement output connector --------- 1 pc. (PRC03-12A10-3F19.5 Tajimi brand) |
|
 |
||
 |
||
