Digital Upright Gauges (0.001mm, 0.01mm)

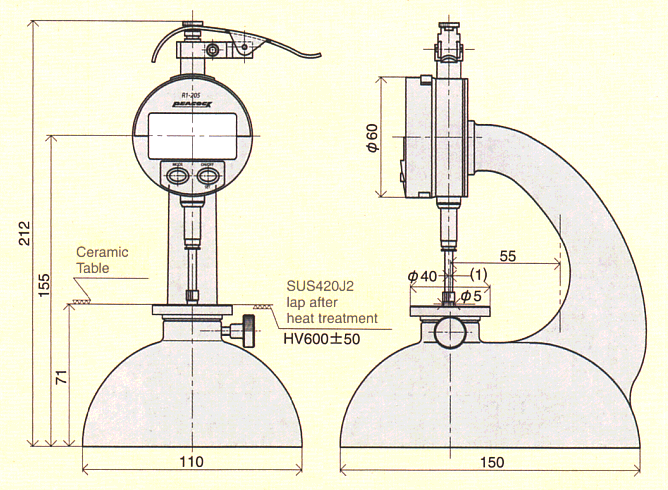

Best suited to inspect sizes precision parts or to measure thickness of laboratory specimens. Digital Upright Gauges (0.001mm, 0.01mm) Model R1-127 (Discontinued) Resolution 0.01mm Range 0 - 12mm Depth 55mm Model R1-257 (Discontinued) Resolution 0.01mm Range 0 - 20mm Depth 55mm Model R1-205 (Discontinued) Resolution 0.001mm Range 0 - 20mm Depth 55mm Specifications Model R1-205 (Discontinued) R1-257 (Discontinued) R1-127 (Discontinued) Resolution 0.001mm 0.01mm 0.01mm Accuracy (excluding quantized error) ±0.004mm ±0.02mm ±0.02mm Gauge type DG-205 DG-257 DG-127 Measuring range 0 - 20mm 0 - 20mm 0 - 12mm Measuring depth 55mm 55mm 55mm Measuring force Less than 1.1N Less than 1.1N Less than 0.95N Contact point diameter ø 5mm ø 5mm ø 5mm Tablel diameter ø 40mm ø 40mm ø 40mm Dimensions; R1-205 / R1-257 Modification for contact point (Special order) Flat type Replaceable Contact Point Meedle type Please specify "ø D" Accessories for Dial Gauges Replaceable contact points can be installed. Please specify dimension of "H" and "ø D" | HOME | Product Information | Digital Indicator Application Series | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
